Preview of 66 METERS FISH CARRIER VESSEL
Naval Drawing

66 METERS FISH CARRIER VESSEL

₱3,200.00
🔒 Log in to buy Create a free account

Free registration · verify your email · pay with QR Ph

  • File66 METERS FISH CARRIER.dwg
  • Size760.2 KB
  • FormatDWG
  • Sales0
  • UpdatedOct 14, 2026 2:02 AM

Description

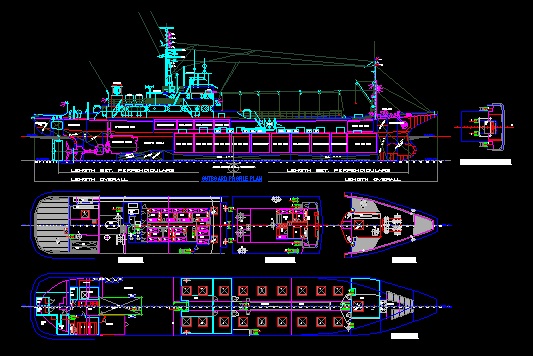

66 Meters Fish Carrier Vessel, 4 Sheets Plan Available In CAD Format: Lines Plan And Table Of Offsets, General Arrangement Plan, Construction & Midship Section Plan, and Capacity Plan.
